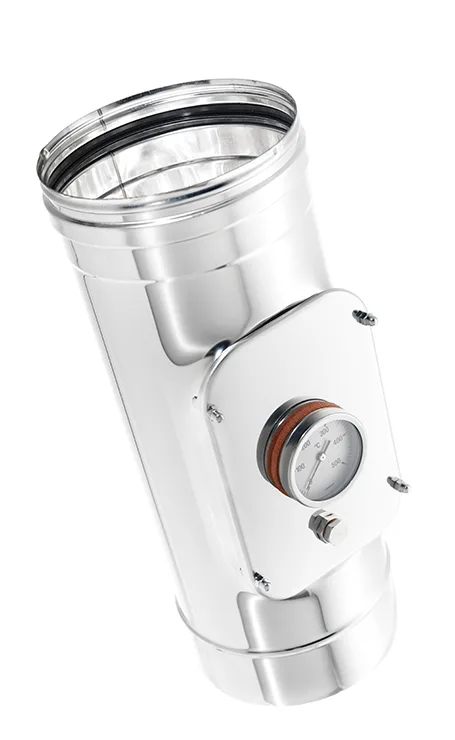

DYNAMIC ONE
DYNAMIC ONE
Connecting flue pipes for indoor, made of stainless steel AISI 316L of 0,5 mm thick…
Connecting flue pipes for indoor, made of stainless steel AISI 316L of 0,5 mm thickness.
All products are manufactured by automatic processes such as:
– calendering : from coils to finished pipe
– longitudinal laser beam welding
– robotic tig welding of bends
– female connection with particular “click-clack” system, exclusively from diameter 80 to 200 included, for easy and quick installations.
The connecting flue pipes for appliances fuelled by solid and/ or liquid fuels can reach a working temperature up to 200°C by using silicone gaskets (supplied up to diameter 180 included).
The Dynamic One range is used for smoke extraction in wet or dry working conditions; it is tested up to 40 Pa in N1 negative pressure (without gasket) and up to 200 Pa in P1 positive pressure (with gasket).
Suitable for ducting or restoration of existing chimneys and technical compartments.
The whole line is V2 tested, therefore resistant to corrosion, and G tested, therefore resists soot fire at 1000 ° C. Available in diameters from 80 to 400 mm.
